P3.91-7.8 LED transparent LED screen

1.Installation method



Hanging





Floor stand



2.System schematic



3.Product introduction

P3.91-7.81 full-color high-pass LED display, a new generation of LED display products. It can ensure the color richness and display details of the dynamic picture without affecting the lighting and aesthetics of the installation position.

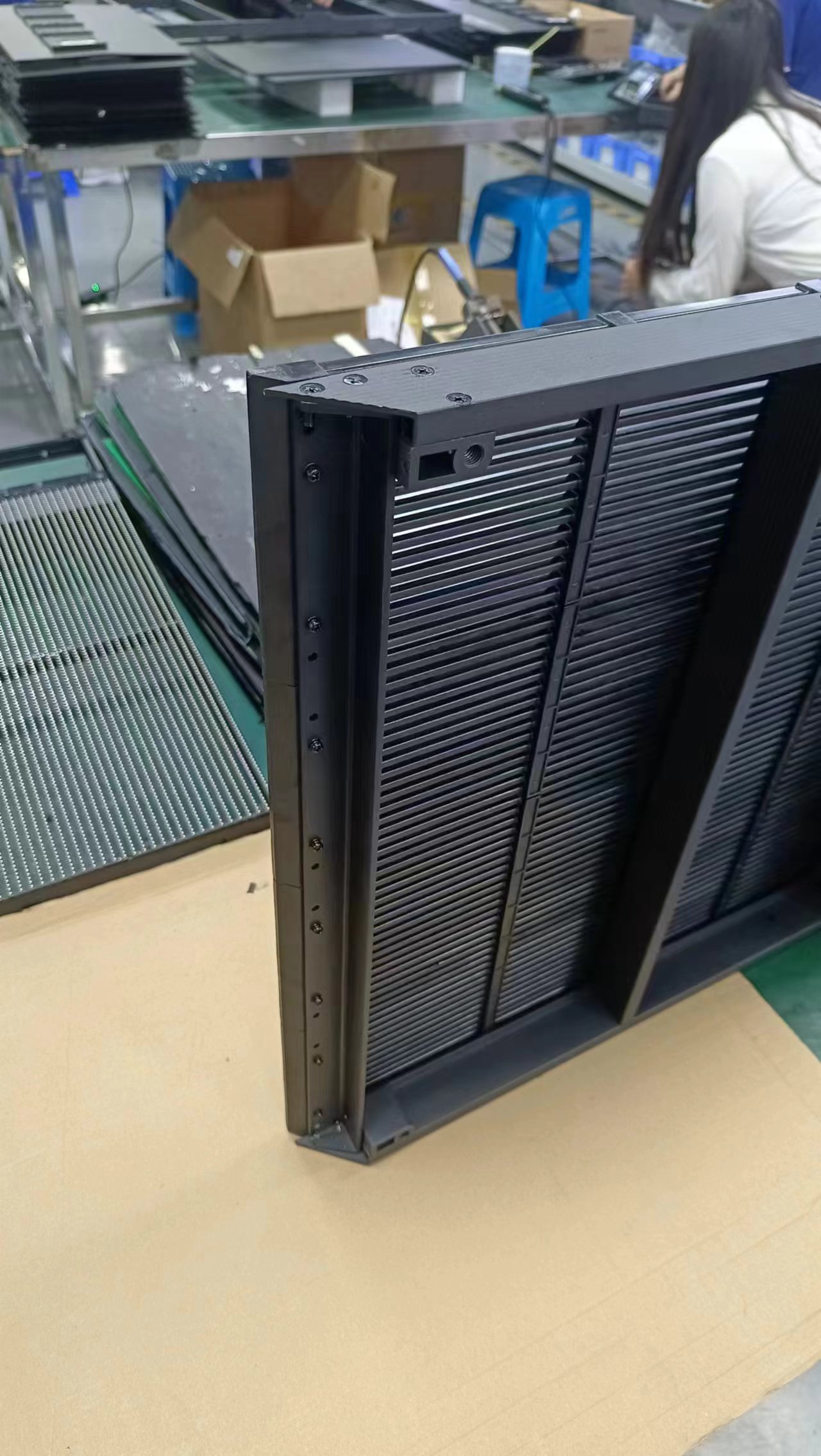

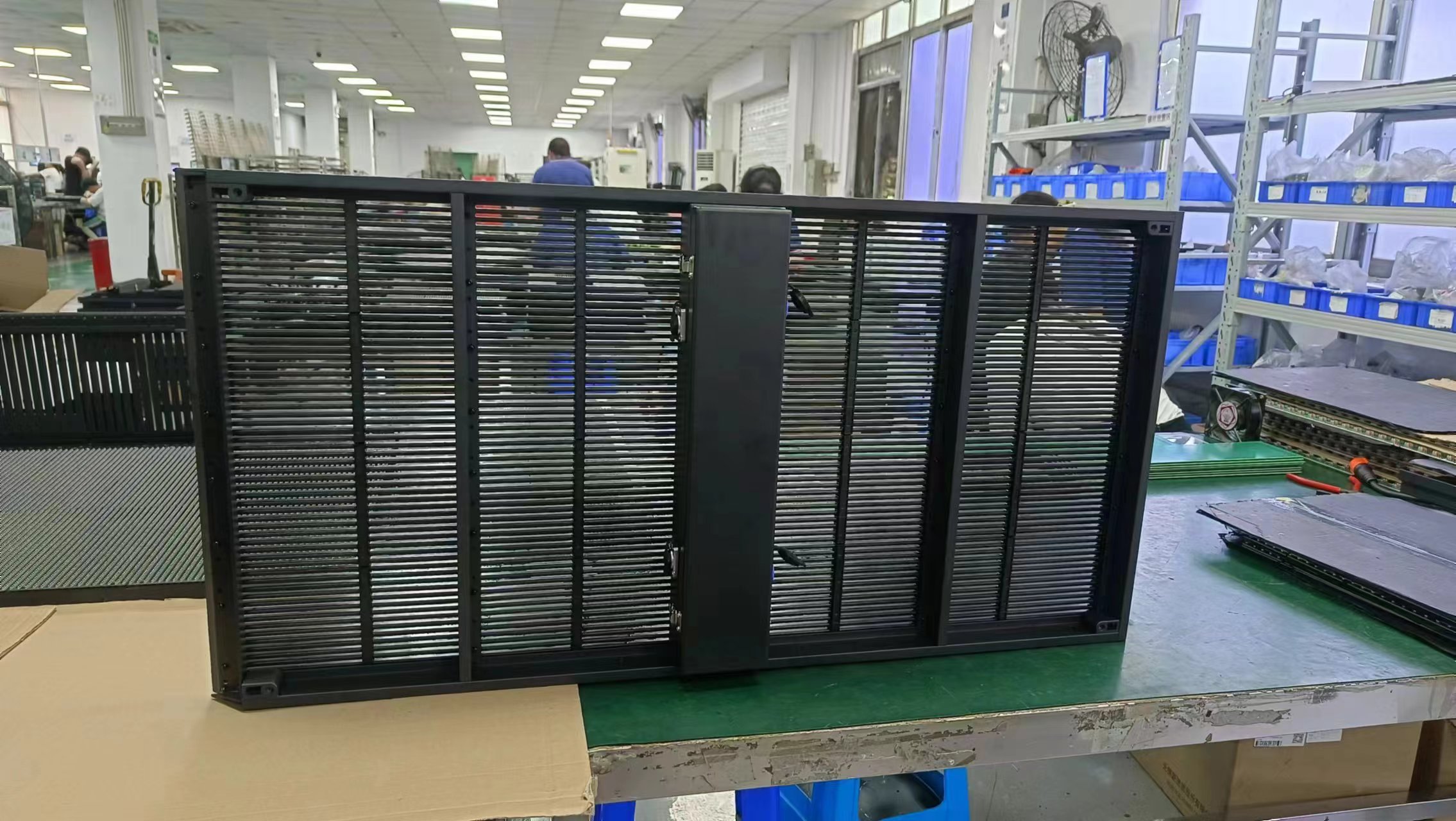

It is designed with a cabinet size of 1000X500;1000*1000;500*500mm, and can be spliced out of any shape in any direction and any size. At the same time, the standard display size design makes the displayed picture uncompressed, clear and true, showing perfect visual effect, simple installation, bright color, and has become the preferred LED display product for glass window! Creative and leading the trend!



4.Product parameters

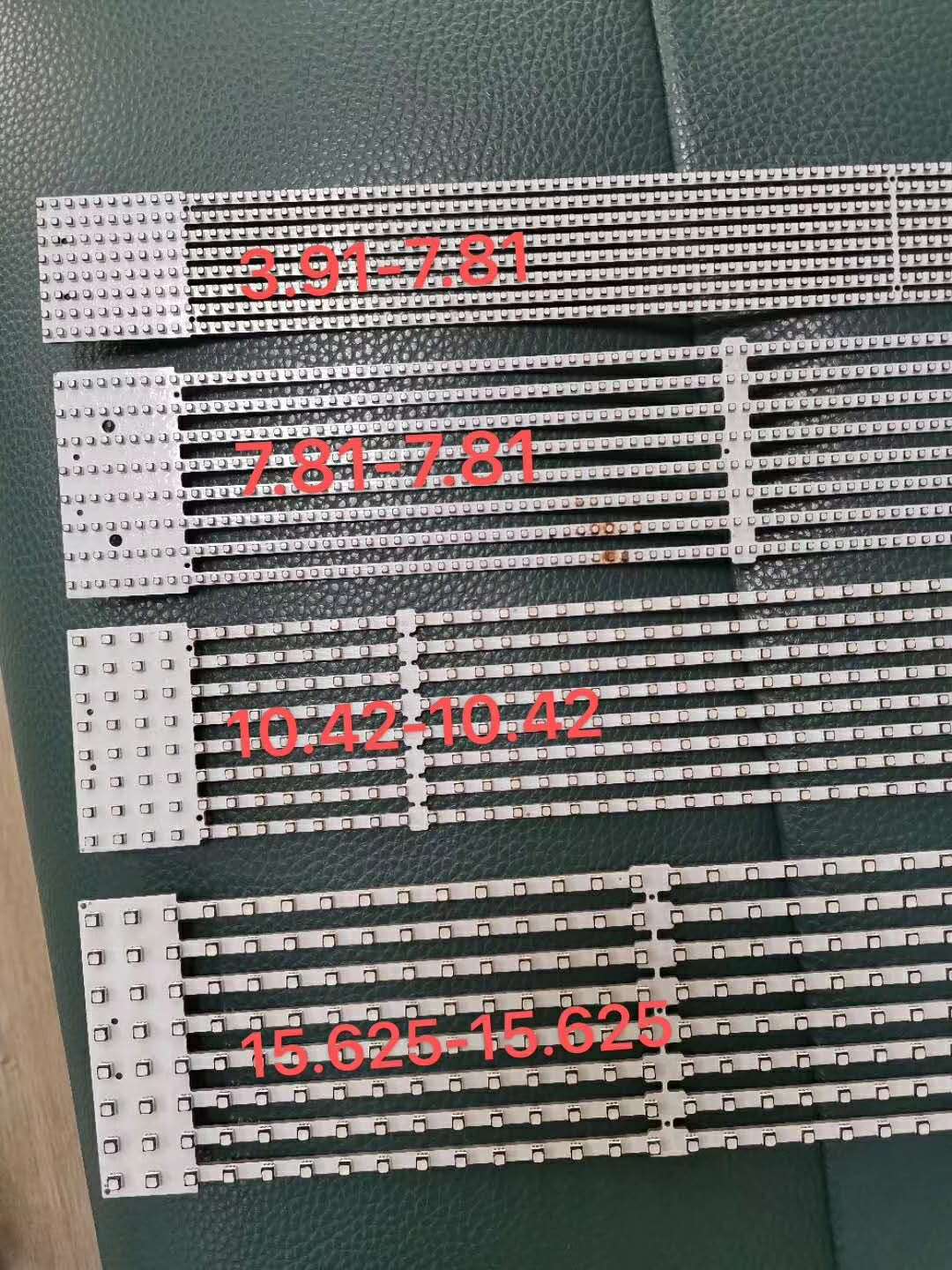

P3.91-7.81

Pixel Pitchmm

3.91mm-7.81mm

LED Package

 SMD 2121

Driving IC

                ICN2038s or IC9866 ,16 scan

Physical density

32768PXm²

Drive mode

Constant current drive IC

Brightness(cd/m²)

600~800cd/m²

Transparency

60%

Gray level

6553615bit

Refresh rate hz

3840hz

PCB board

4layers, 1.6thickness, shengyi

Connector

3M Gold plating



Waterproof level

IP33



Bright adjustment

256  level

Perspective

120°

Viewing distance (m

≥4M

Power Demand

220V±10%;AC50HZ

Average power (w)

135W/m²

Max power (w)

400W/m²

Box size (mm)

1000mm*1000mm*70mm

Weight (kg/ m²)

7.5kg

Installation method

Hoisting, fixed installation

Maintenance method

Front maintenance

Protection level

Indoor, easy to waterproof

Life Span (h)

100000 hours

Using Environment

-10℃~+40℃;  15%90%RH



5.Video



18c7ebf956fd8ac19bdb5d2849951b5
91af86e2e9dee5d6dfc432899ab5a88
80d6eb6486f8c755a545ae2a8059bb3
ef709a4d5bc0ea0145fac7b5f0ed1df
7a9054b51d746e5d92ea59f309b9041
types
Frontlighting
Sidedlighting
